Open Dock Shapes

Drawing Die Number Description Wall LBS/FT

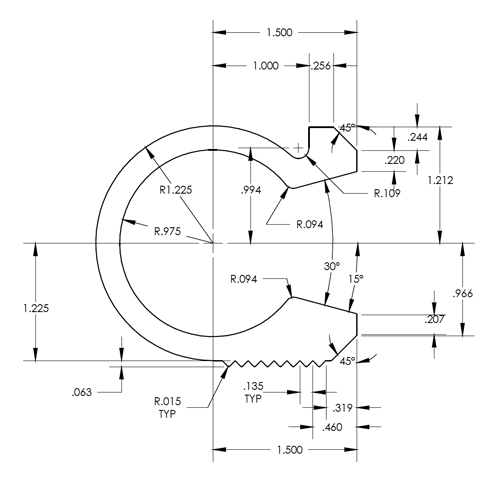

WS10133 WS10133 HINGE FOR BOAT DOCK 0.250 2.454

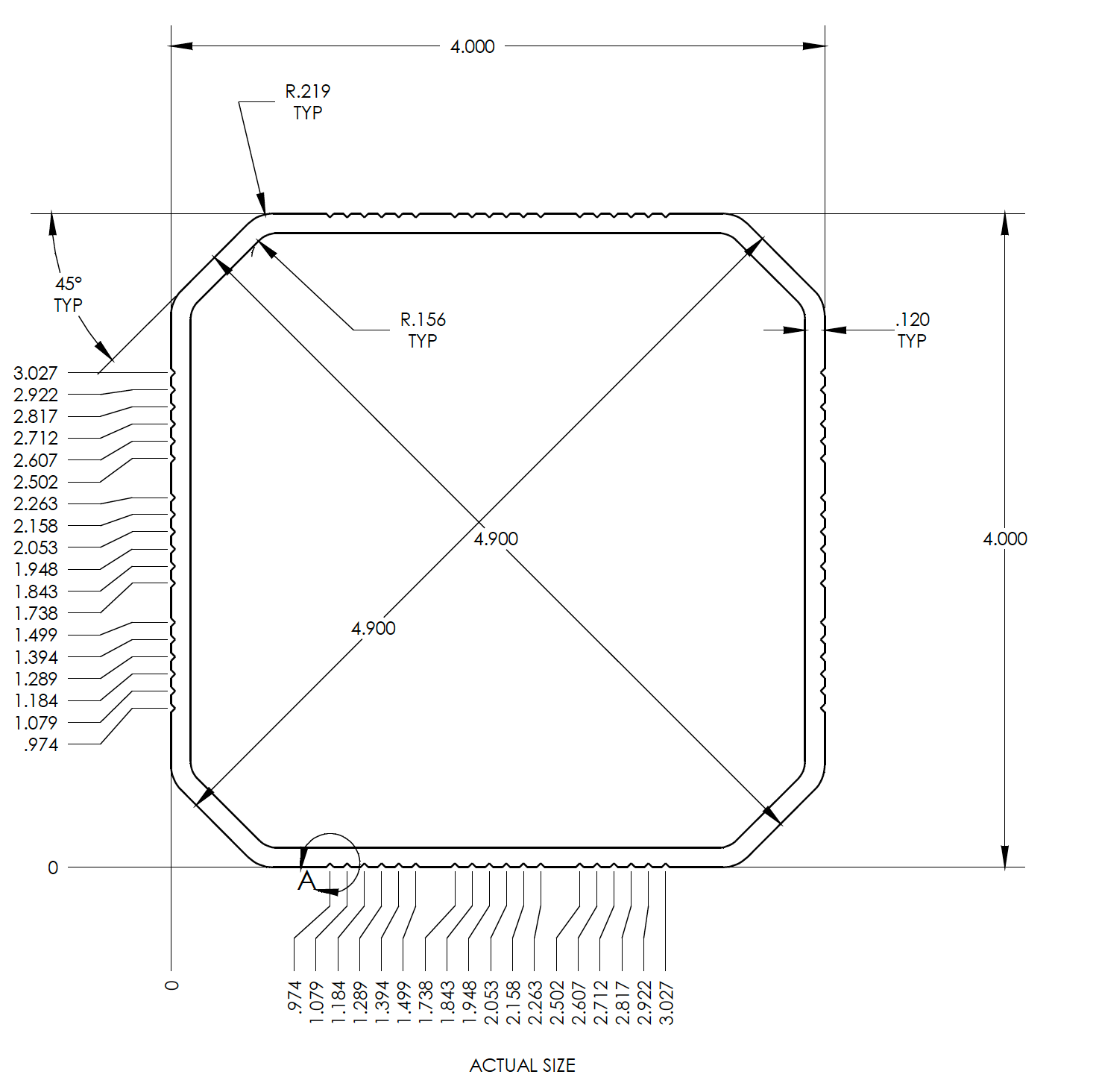

WH10134 WH10134 4 x 4 ANGLED CORNER SERRATED BOAT DOCK 0.120 1.958

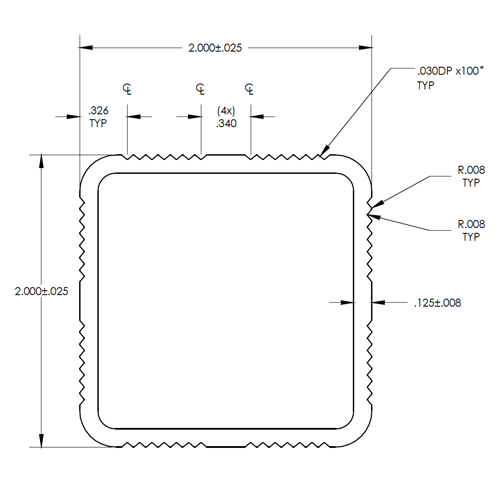

WH10135 WH10135 2 x 2 SERRATED SQUARE TUBE 0.125 0.967

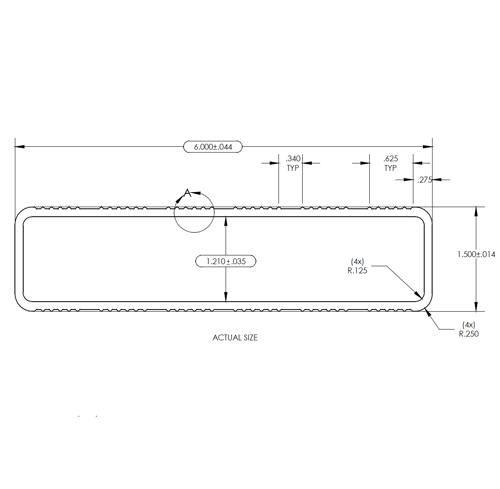

WH10136 WH10136 6.000 x 1.5000 TUBE w/ SERRATIONS 0.115 2.018

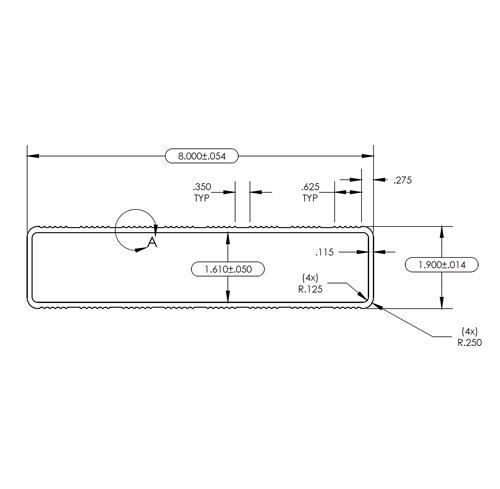

WH10137 WH10137 1.900 x 8 TUBE 0.115 2.719

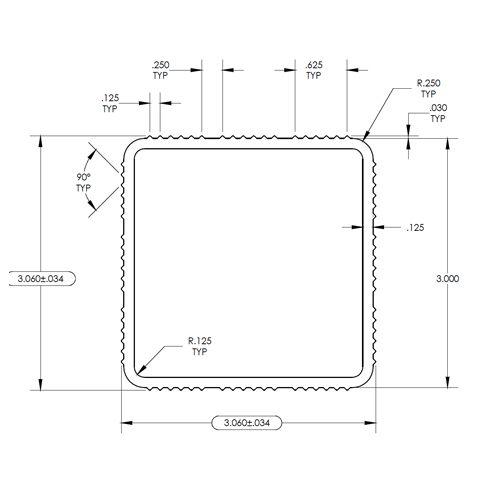

WH10138 WH10138 3 x 3 SQUARE TUBE w/ BUMPS 0.125 1.743
WS10140 WS10140 3/4 x 1-1/2 x 1/8 ANGLE 0.125 0.311

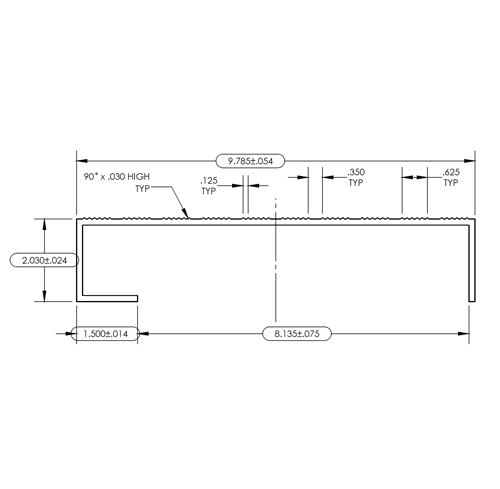

WS10141 WS10141 SUPPORT BEAM w/ SQUARE CORNERS 0.150 2.704

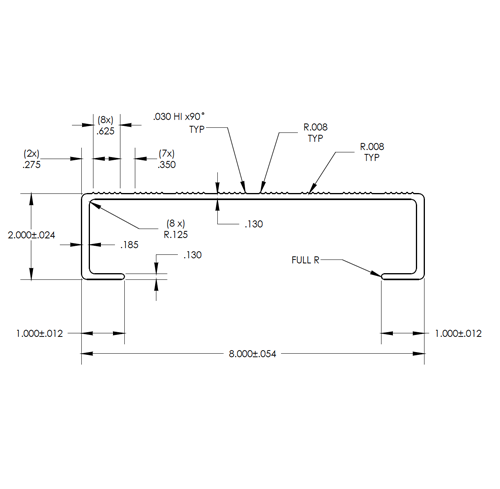

WS10142 WS10142 8 x 2 DOCK CHANNEL Varies 2.343
WS10246 WS10246 Sign Extrusion Varies 0.790
WS11855 WS11855 Side Beam Varies 2.635

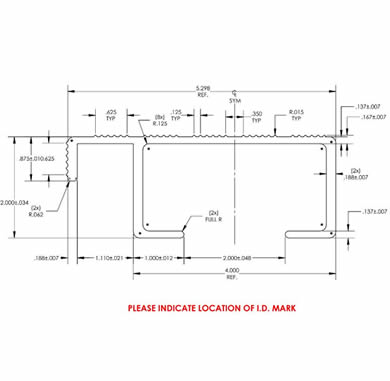

WS11887 WS11887 Plank Beam Varies 2.140
