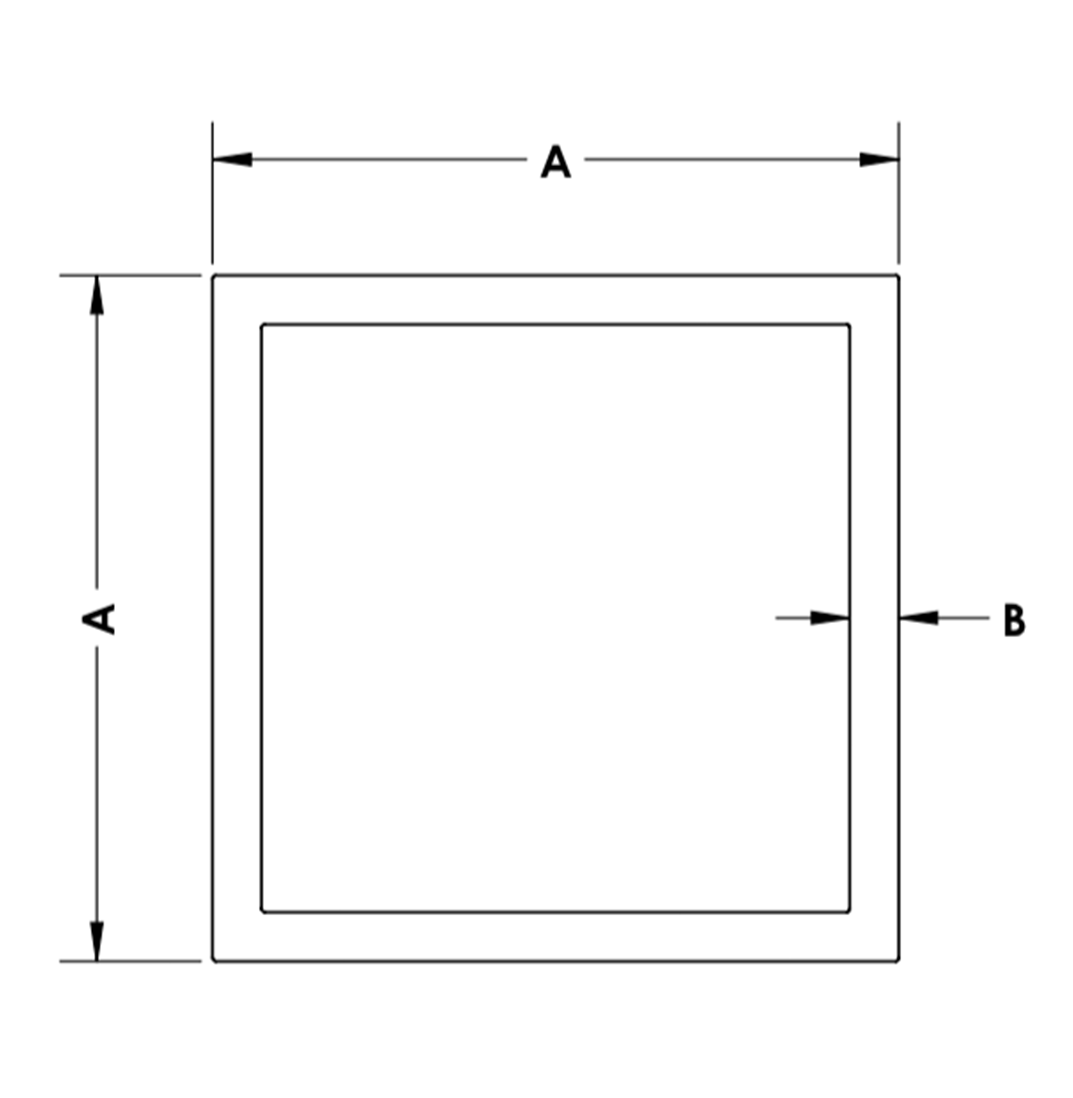

Square Tube
| Die Number | A | B | LBS/FT |
|---|
| WH10048 | 0.625 | 0.062 | 0.163 |
| WH10047 | 0.750 | 0.062 | 0.200 |
| WH10870 | 0.750 | 0.090 | 0.278 |
| WH10037 | 0.750 | 0.125 | 0.366 |
| WH10860 | 1.000 | 0.050 | 0.222 |
| WH10036 | 1.000 | 0.062 | 0.272 |
| WH10827 | 1.000 | 0.090 | 0.383 |
| WH10742 | 1.000 | 0.093 | 0.395 |
| WH10013 | 1.000 | 0.125 | 0.525 |
| WH10185 | 1.250 | 0.125 | 0.658 |
| WH10155 | 1.500 | 0.062 | 0.417 |
| WH10595 | 1.500 | 0.093 | 0.613 |
| WH10016 | 1.500 | 0.125 | 0.811 |
| WH10883 | 1.500 | 0.188 | 1.155 |
| WH10521 | 1.500 | 0.250 | 1.463 |
| WH10031 | 2.000 | 0.062 | 0.563 |
| WH10596 | 2.000 | 0.093 | 0.830 |
| WH10010 | 2.000 | 0.125 | 1.106 |
| WH10035 | 2.000 | 0.188 | 1.595 |
| WH10017 | 2.000 | 0.250 | 2.065 |
| WH10885 | 2.500 | 0.075 | 0.852 |
| WH10372 | 2.500 | 0.125 | 1.390 |
| WH10716 | 2.500 | 0.250 | 2.634 |
| WH11321 | 3.000 | 0.090 | 1.226 |
| WH10011 | 3.000 | 0.125 | 1.696 |
| WH10223 | 3.000 | 0.188 | 2.469 |
| WH10094 | 3.000 | 0.250 | 3.219 |
| WH10917 | 3.500 | 0.125 | 1.975 |
| WH10012 | 4.000 | 0.125 | 2.325 |
| WH10408 | 4.000 | 0.188 | 3.355 |
| WH10485 ^ | 4.000 | 0.250 | 4.389 |
| WH10884 | 5.000 | 0.125 | 2.853 |
| WH11508 | 5.000 | 0.250 | 5.560 |
| WH10187^ | 6.000 | 0.125 | 3.438 |
^ Premium Applies
^^ Length Restriction; Premium Applies
