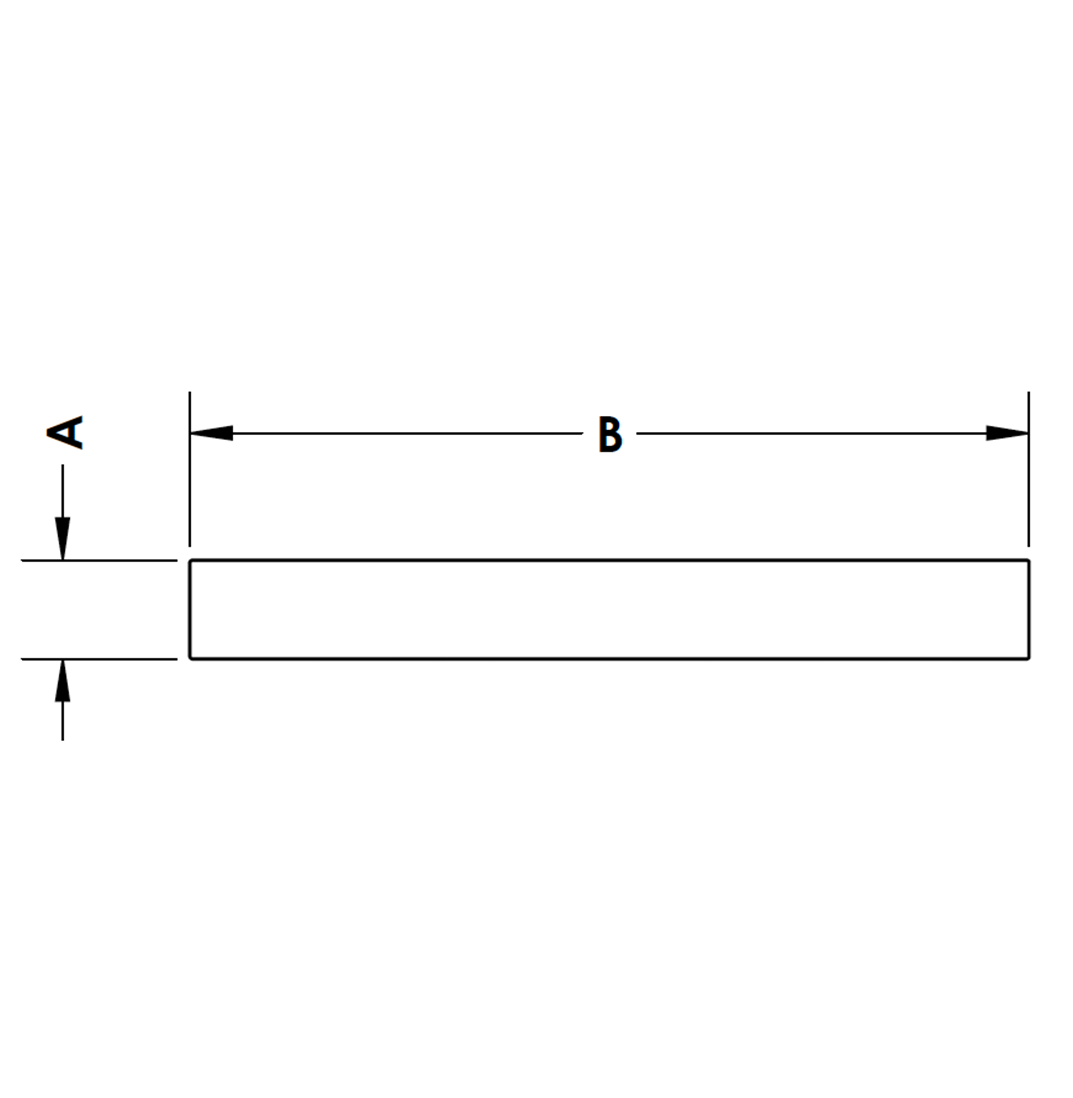

Flat Bar
| Die Number | A | B | LBS/FT |
|---|
| WS10262 | 0.125 | 0.750 | 0.110 |
| WS10387 | 0.125 | 1.000 | 0.146 |
| WS10467 | 0.125 | 1.500 | 0.219 |
| WS10327 | 0.125 | 2.000 | 0.293 |
| WS11161 | 0.125 | 3.000 | 0.439 |
| WS10481 | 0.125 | 4.000 | 0.585 |
| WS10560 | 0.188 | 0.750 | 0.165 |
| WS11852 | 0.188 | 1.000 | 0.219 |
| WS10444 | 0.188 | 1.500 | 0.329 |
| WS10067 | 0.188 | 2.000 | 0.439 |
| WS11343 | 0.188 | 3.000 | 0.658 |
| WS10421 | 0.188 | 4.000 | 0.876 |
| WS10068 | 0.250 | 1.000 | 0.292 |
| WS10416 | 0.250 | 1.250 | 0.366 |
| WS10417 | 0.250 | 1.500 | 0.439 |
| WS10069 | 0.250 | 2.000 | 0.585 |
| WS10418 | 0.250 | 2.500 | 0.732 |
| WS10106 | 0.250 | 3.000 | 0.878 |
| WS10726 | 0.250 | 3.500 | 1.024 |
| WS10070 | 0.250 | 4.000 | 1.170 |
| WS10182 | 0.250 | 5.000 | 1.463 |
| WS10071 | 0.250 | 6.000 | 1.756 |
| WS10275 | 0.250 | 7.000 | 2.048 |
| WS10351 | 0.250 | 8.000 | 2.341 |
| WS11401 | 0.250 | 10.000 | 2.926 |
| WS10412 | 0.375 | 1.000 | 0.439 |
| WS11549 | 0.375 | 1.500 | 0.658 |
| WS10194 | 0.375 | 2.000 | 0.878 |
| WS10419 | 0.375 | 2.500 | 1.097 |
| WS10420 | 0.375 | 3.000 | 1.317 |
| WS10815 | 0.375 | 3.500 | 1.536 |
| WS10222 | 0.375 | 4.000 | 1.756 |
| WS10563 | 0.375 | 5.000 | 2.195 |
| WS10171 | 0.375 | 6.000 | 2.634 |
| WS11407 | 0.375 | 7.000 | 3.072 |
| WS11345 | 0.375 | 8.000 | 3.511 |
| WS11719 | 0.500 | 1.000 | 0.585 |
| WS11383 | 0.500 | 1.500 | 0.878 |
| WS10072 | 0.500 | 2.000 | 1.170 |
| WS10251 | 0.500 | 3.000 | 1.756 |
| WS10183 | 0.500 | 4.000 | 2.341 |
| WS10172 | 0.500 | 5.000 | 2.926 |
| WS10173 | 0.500 | 6.000 | 3.512 |
| WS10681 | 0.500 | 6.500 | 3.804 |
| WS11877 | 0.500 | 8.000 | 4.682 |
| WS10276^ | 0.625 | 6.000 | 4.389 |
| WS10174 | 0.750 | 2.000 | 1.756 |
| WS11808 | 0.750 | 3.000 | 2.633 |
| WS10161 | 0.750 | 6.000 | 5.267 |
| WS10175 | 1.000 | 2.000 | 2.341 |
| WS10162 | 1.000 | 3.000 | 3.512 |
^ Length Restriction
