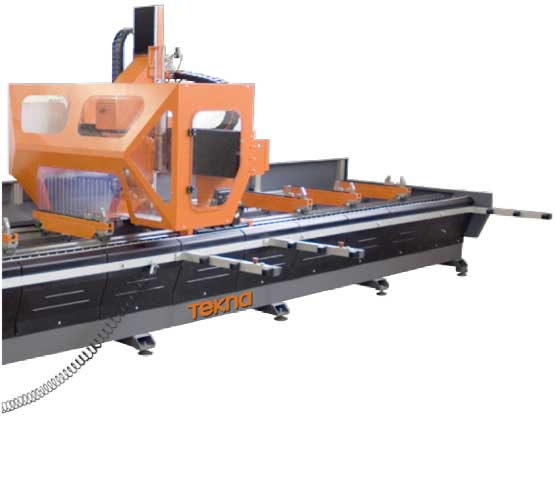

Tekna – Panel / Profile CNC Machining Center

The Tekna 5-Axis CNC machine is equipped with an electric spindle that can rotate around the B and C axis; this allows for machining on five sizes of the profile with just one clamping operation. In addition to machining and drilling, copy-milling of aluminum extruded profiles and other materials, including steel profiles up to 5mm thick.

Machine Specifications

• X Travel: 160 in. (6600 mm)
• Y Travel: 28.5 in. (725 mm)
• Z Spindle Travel: 12 in. (300 mm)
• Rapid Travel Speed:
  • X – 3150 in./Min (80 meters/Min)
  • Y – 2165 in./Min (55 meters/Min)
  • Z – 1181 in./Min (30 meters/Min)
• Accuracy:
  • Repetition on Linear Positioning +/- .039 in. (+/- 1 mm)
• Machine Spindle:
  • Rotation: C-Axis +/- 90 Degrees
  • B Axis : 360 degrees
  • Spindle Speed: 100 – 22,000 Rpm
  • Spindle Power: 13.41 Hp (10.00 kw)
  • Drawbar: Power Pull Stud Tool Changer / Taper: HSK F63
  • Tool Changer: 14 Stations / Spindle Coolant

Category: Mills, Vertical, Traveling Spindle Type CNC – 5 Axes
Manufacturer: Tekna 443 – 6
Control Manufacturer and Model: Tekna / CN6
