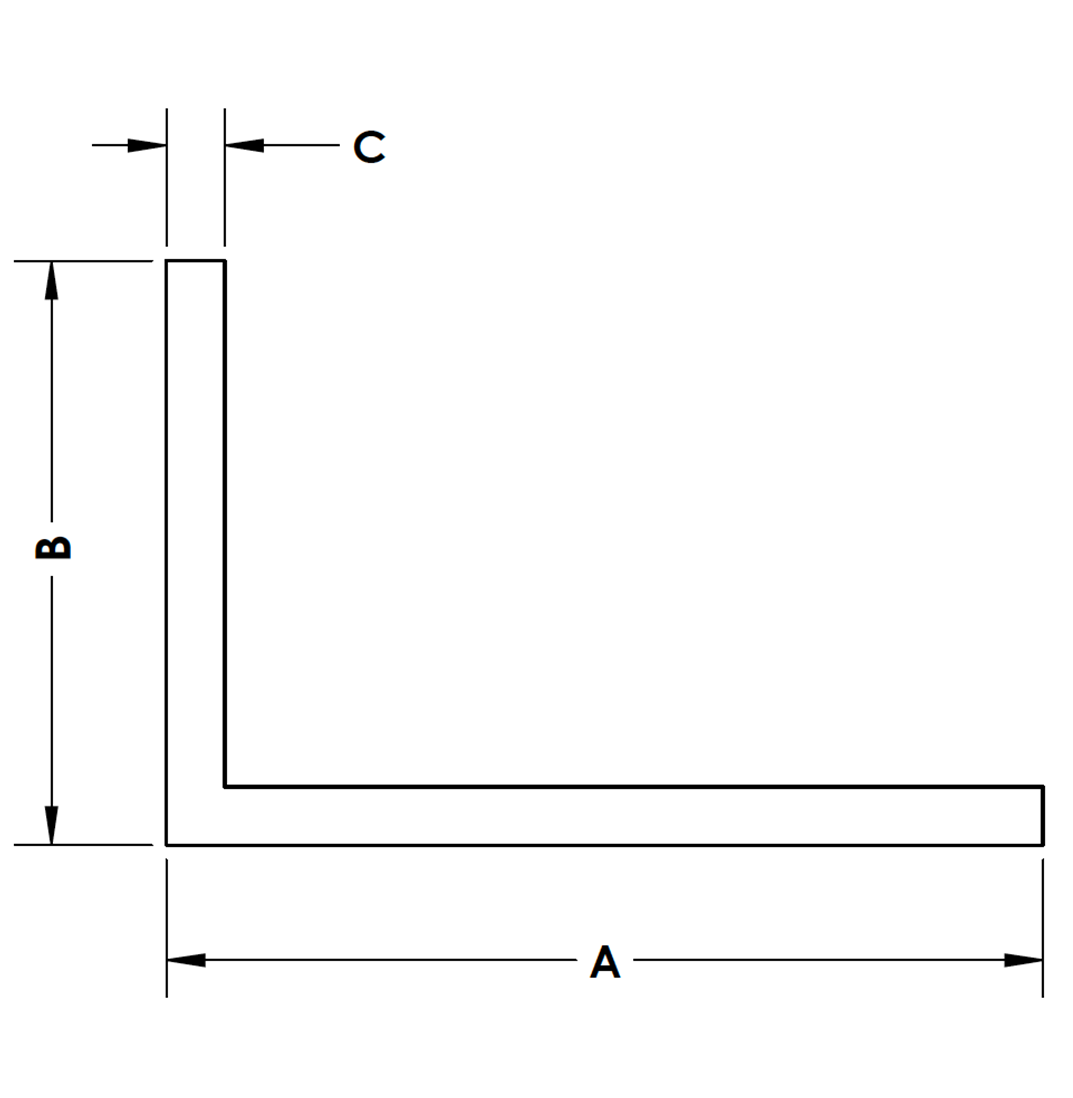

Architectural Angle
| Die Number | A | B | C | LBS/FT |
|---|
| WS10833 | 0.500 | 0.500 | 0.125 | 0.128 |
| WS11180 | 0.750 | 0.750 | 0.125 | 0.201 |
| WS10022 | 1.000 | 1.000 | 0.125 | 0.277 |
| WS11208 | 1.000 | 1.000 | 0.250 | 0.512 |
| WS10506 | 1.250 | 1.250 | 0.125 | 0.347 |
| WS10574 | 1.500 | 0.750 | 0.125 | 0.311 |
| WS11181 | 1.500 | 1.000 | 0.125 | 0.347 |
| WS11930 | 1.500 | 1.500 | 0.062 | 0.213 |
| WS10021 | 1.500 | 1.500 | 0.125 | 0.431 |
| WS10023 | 1.500 | 1.500 | 0.188 | 0.619 |
| WS10968 | 1.750 | 1.750 | 0.125 | 0.494 |
| WS10722 | 2.000 | 1.000 | 0.125 | 0.420 |
| WS11038 | 2.000 | 1.500 | 0.188 | 0.729 |
| WS11929 | 2.000 | 2.000 | 0.062 | 0.286 |
| WS10020 | 2.000 | 2.000 | 0.125 | 0.572 |
| WS10019 | 2.000 | 2.000 | 0.188 | 0.845 |
| WS10034 | 2.000 | 2.000 | 0.250 | 1.097 |
| WS11342 | 3.000 | 1.000 | 0.125 | 0.567 |
| WS10723 | 3.000 | 2.000 | 0.125 | 0.713 |
| WS10383 | 3.000 | 2.000 | 0.188 | 1.059 |
| WS10528 | 3.000 | 3.000 | 0.125 | 0.859 |
| WS10156 | 3.000 | 3.000 | 0.250 | 1.683 |
| WS10024 | 4.000 | 2.000 | 0.125 | 0.866 |
| WS10721 | 4.000 | 2.000 | 0.250 | 1.682 |
